DETAILS

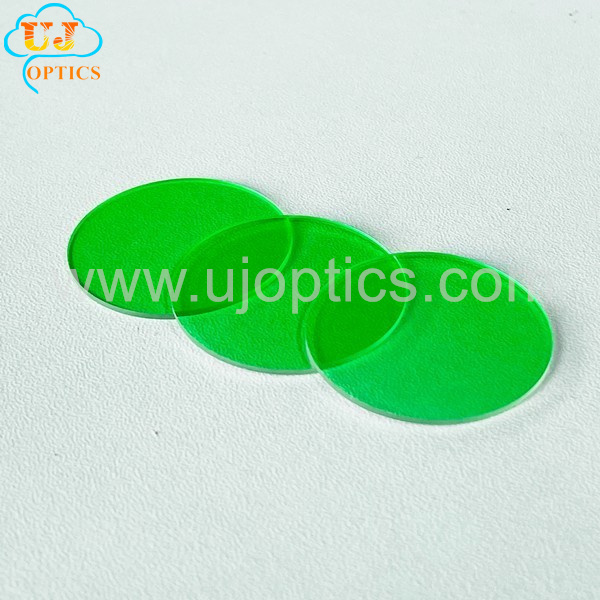

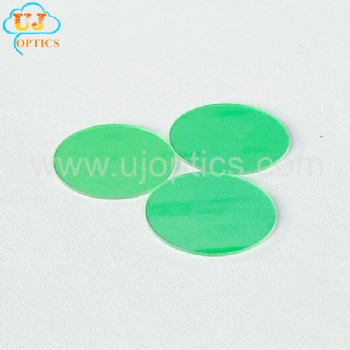

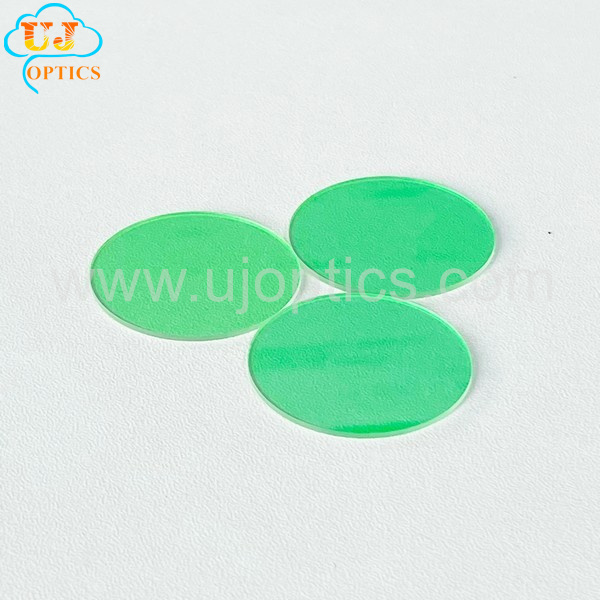

NBP520nm narrow bandpass filter
520nm narrow band filter can be used in special gel imaging system widely applied in biological transmission, gene diagnosis, virus detection and other fields. Various nucleic acid DNA/RNA (EB, Goldview (GV), TLCPIATES, SYBR GREEN) and other UV Gel imagers, camera obscuration ultraviolet analyzer. The background noise can be effectively reduced, and the clear image can be applied to various gel imagers at home and abroad.
| Item | Parameters |
| Product name | NBP520nm narrow bandpass filter |
| Model number | NBP520nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 520±5nm |
| FWHM | 10±2nm |
| Transmittance | T＞80%@520±5nm |
| Cut off rate: | OD4 200-1100nm |
| Raw material | B270 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension | D20x3.8mm D24x3mm |
