DETAILS

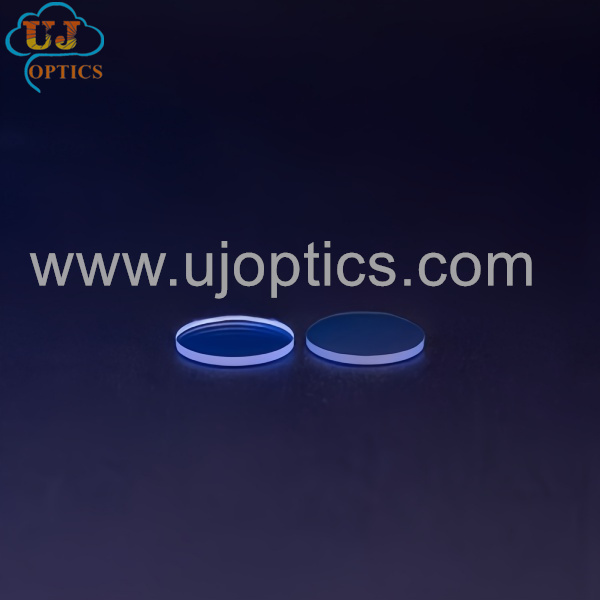

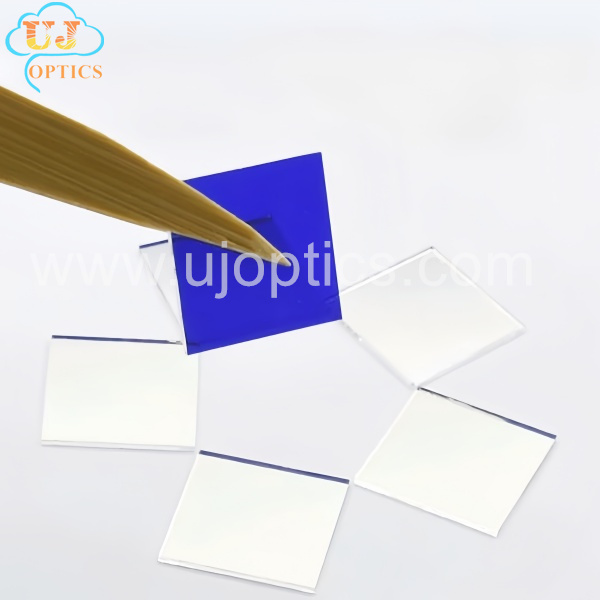

NBP405nm narrow bandpass filter
405nm narrow-band filter is used for enzyme labeling instrument.
| Item | Parameters |
| Product name | NBP405nm narrow bandpass filter |
| Model number | NBP405nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 405±5nm |
| FWHM | 10±3nm |
| Transmittance | T＞60%@405±5nm |
| Cut off rate: | OD4 200-1100nm |
| Raw material | B270 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension |
