DETAILS

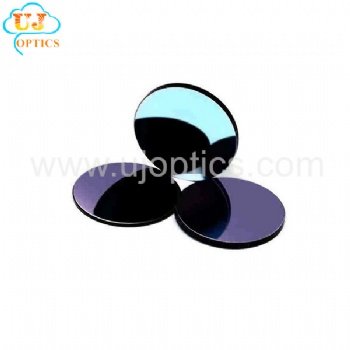

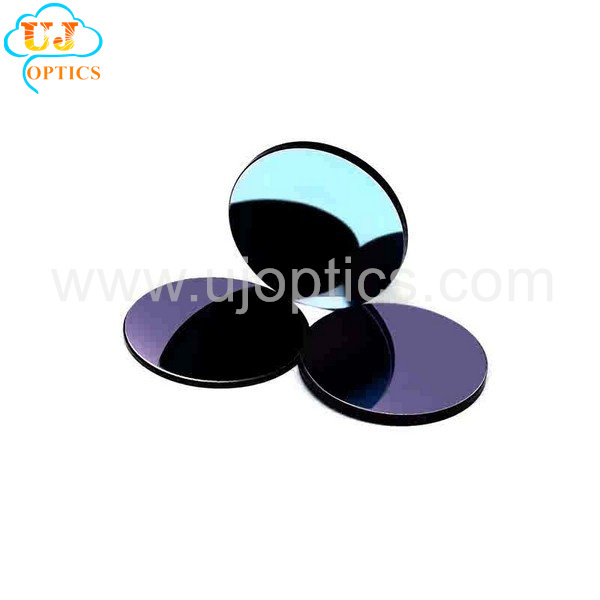

NBP 380nm FWHM 10nm OD4@200-1100nm UV filter narrow band pass filter
380m narrow-band filter is used for enzyme labeling instrument. It adopts high-quality ultra-thin optical glass, with excellent light transmittance, smoothness and flatness. After the coating process of imported coating equipment, the filter has many characteristics, such as excellent film firmness, good test spectral uniformity, strong central wave stability and so on.

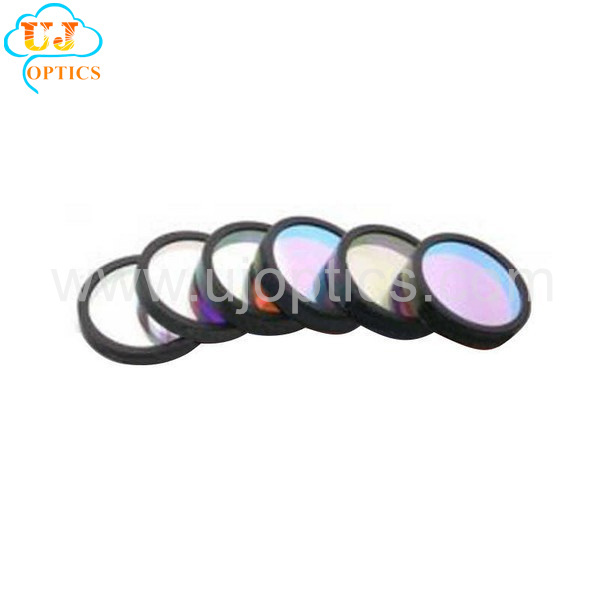

UJ Optics can customize various specifications and sizes of filters according to customer needs.
| Item | Parameters |
| Product name | NBP380nm narrow bandpass filter |
| Model number | NBP380nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 380±5nm |
| FWHM | 10±3nm |

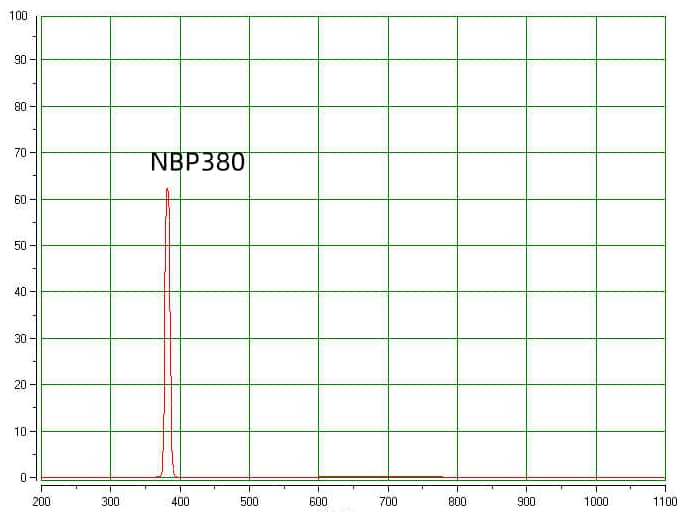

| Transmittance | T＞60%@380±5nm |
| Cut off rate: | OD4 200-1100nm |
| Raw material | B270 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension |
