NBP460nm narrow bandpass filter
460nm narrow-band filter is used for fluorescence analyzer, enzyme marker, cable TV upgrade equipment, wireless transmission equipment, mobile phone bar code scanning, infrared electronic whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical instrument, infrared ink recognition, red film recognition and face recognition sensor system. Hand held infrared laser rangefinder, laser rangefinder, optical instruments, medical and health equipment and testing instruments.
Item | Parameters |
Product name | NBP460nm narrow bandpass filter |
Model number | NBP-460nm |
Description | High Reflection Filters |
Process | IAD Hard Coating |
Centralwavelength(CWL) | 460±5/10nm |
FWHM | 10±2nm |

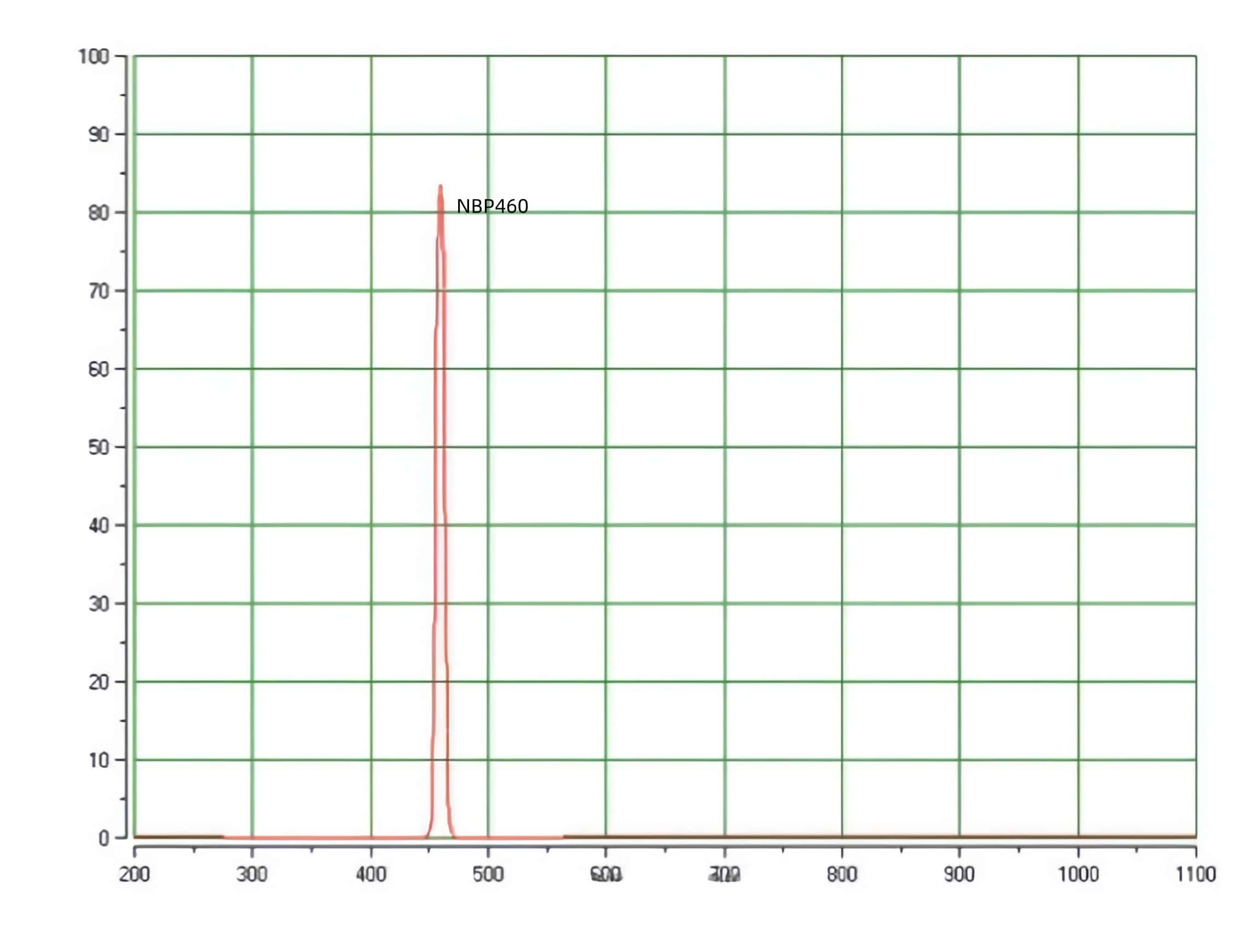

Transmittance | T>80%@460±5/10nm |
Cut off rate: | OD4 200-1100nm |
Raw material | B270 or Corning gorilla glass or other optical glass |
Surface quality(S/D) | 60/40 or better |
Dimension |
