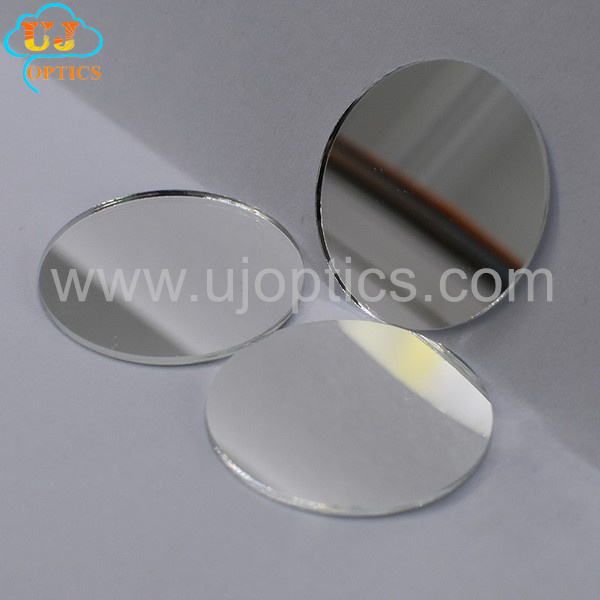

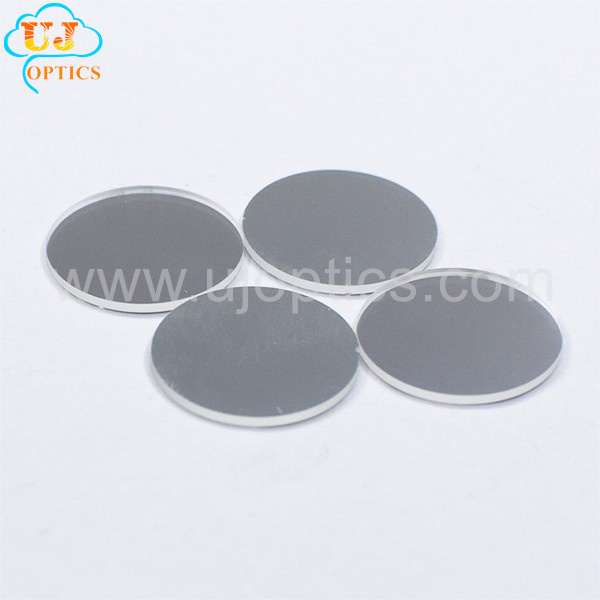

NBP808nm narrow bandpass filter
808nm narrow-band filter is a filter used in laser. It mainly has the technical characteristics of low temperature drift and small angle offset. At present, 808nm is usually used in lidar filter.
| Item | Parameters |
| Product name | NBP808nm narrow bandpass filter |
| Model number | NBP808nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 808±5nm |
| FWHM | 20±3nm |

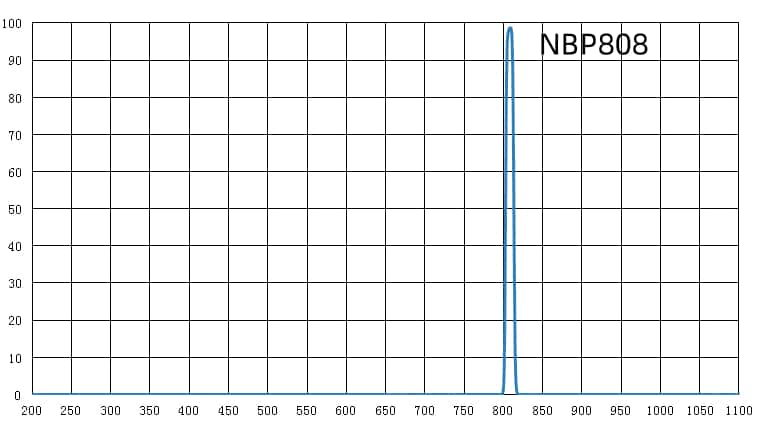

| Transmittance | T＞60%@808±5nm |
| Cut off rate: | OD2 OD3 200-1100nm |
| Raw material | B270 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension/Round Size | D8x0.5mm D11x1mm D15x1.3mm D17.2x1.6mm D19x1mm 21x1mm D22x2.25mm D23x1.1mm D24x2mm D26x0.8mm D28x1mm D30x1mm D34x1.2mm D39x1mm D45x1mm |
| Dimension/Square size | 5x5x0.6mm 6x6x0.55mm 8x8x0.9mm 11x11x1mm 16x16x1mm 53x11x2mm 80x80x1mm 86x86x1mm |
