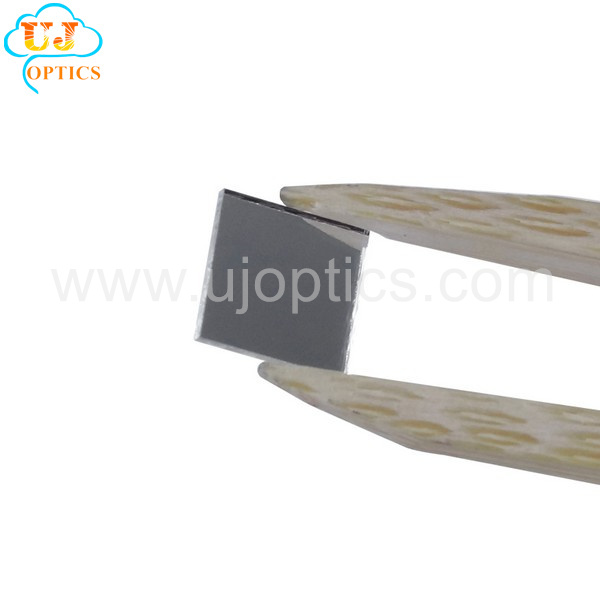

NBP780nm narrow bandpass filter
780nm narrow-band filter is used for fluorescence analyzer, enzyme marker, cable TV upgrade equipment, wireless transmission equipment, mobile phone bar code scanning, infrared electronic whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical instrument, infrared ink recognition, red film recognition, face recognition sensor system, handheld infrared laser rangefinder, laser rangefinder, optical instrument, medical and health equipment and detection instrument.
| Item | Parameters |
| Product name | NBP780nm narrow bandpass filter |
| Model number | NBP780nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |
| Centralwavelength(CWL) | 780±5/10nm |
| FWHM | 20±3nm |

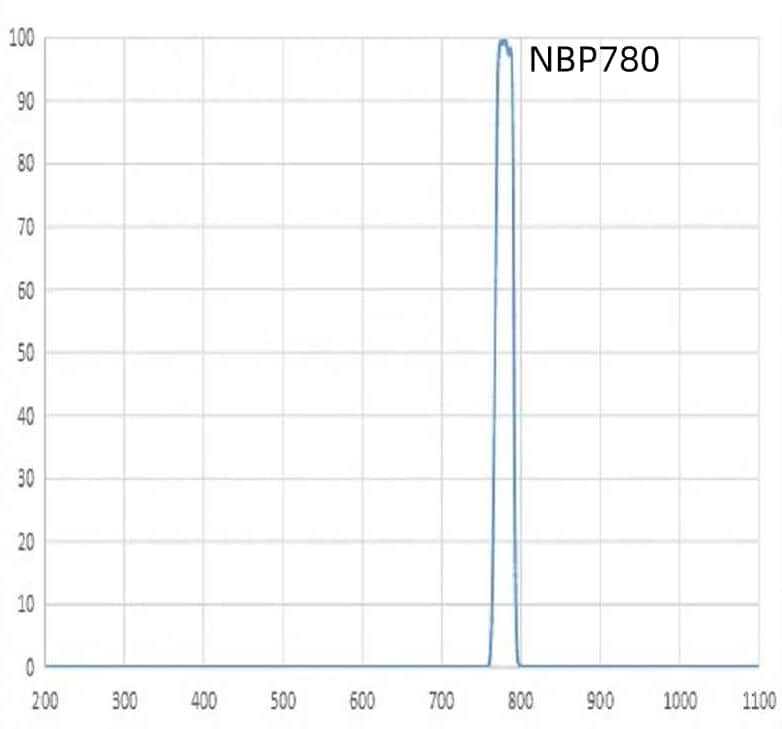

| Transmittance | T＞90%@780±5/10nm |
| Cut off rate: | OD2 OD3 200-1100nm |
| Raw material | B270 or Corning gorilla glass or other optical glass |
| Surface quality(S/D) | 60/40 or better |
| Dimension/Round Size | D5x1.1mm D8x1.1mm D9.9x1.1mm D12x1.1mm D12.4x1mm D15x1.6mm D22x1.1mm D23x1mm D25x1mm D25.4x2.1mm D28x1mm D28.9x2mm D30x1mm D33.5x1.1mm D35x1mm D38x2mm |

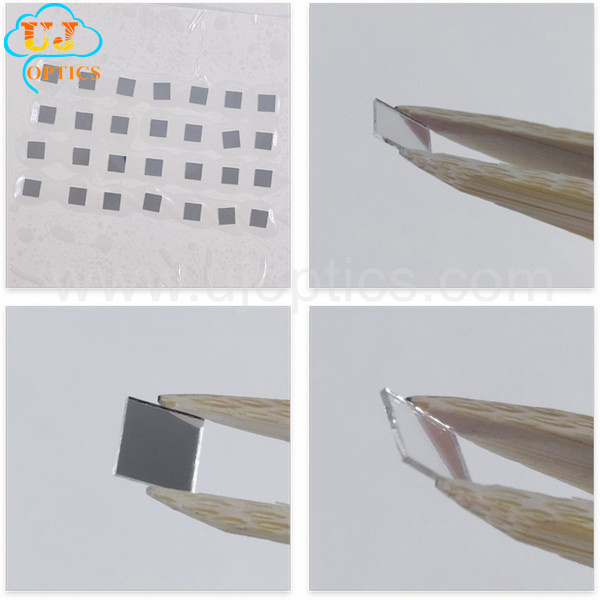

| Dimension/Square size | 4.2x4.2x0.55mm 8x8x1.1mm 10x10x1mm 32x5.5x1.1mm |
