DETAILS

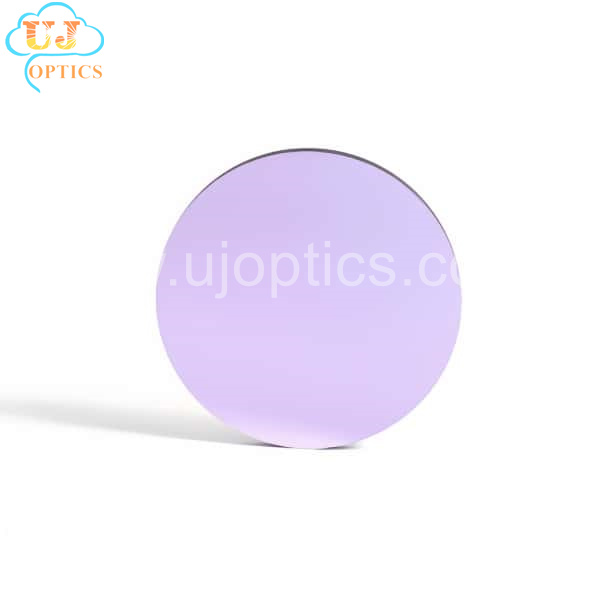

Driverless LiDAR 1550nm Reflective Mirror
Specializing in the production of unmanned LIDAR application 1550nm reflector, reflectivity up to 99% or more, can be processed according to the size can be required, square, round, shaped can be produced.
| Item | Parameters |
| Product name | Driverless LiDAR 1550nm Reflective Mirror |
| Model number | BP1550 |
| CWL | 1550±5nm |
| AOI | 45° |
| Reflected Wavelength | 905±50nm |

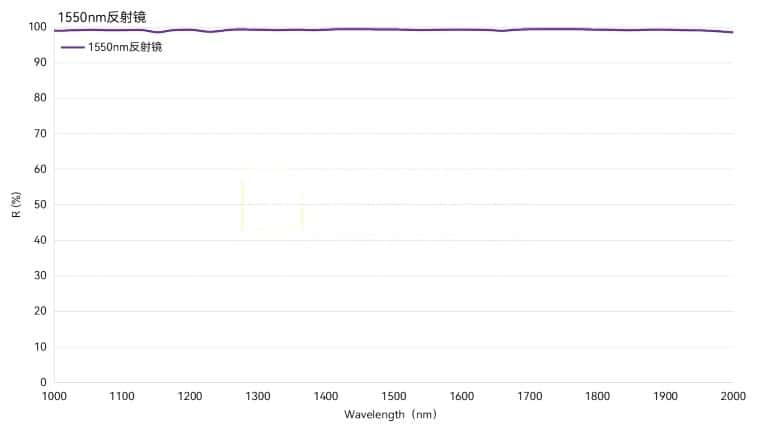

| Reflectivity | UP 99% |
| Row material | K9 BK7 B270 D263T JGS1 or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension | Customized |
| Dimensional tolerances | ±0.1-±0.05mm |
| Thickness | customized |
