HB600 HB610 HB630 HB640 HB650 HB670 HB685 HB700 HB720 Red Cut Off Optical Glass Filter
This series is designed for precise spectral control, blocking wavelengths below the cut-off point (e.g., HB600: 600±10nm) while allowing high transmittance in the target range (e.g., Tλ0≥88.7% at 680nm). Ideal for IR guidance, night vision, medical imaging, and laser applications. Customizable in size/shape, with excellent thermal stability (Tg up to 534°C) and chemical resistance. ISO-certified, ensuring reliability in harsh environments.

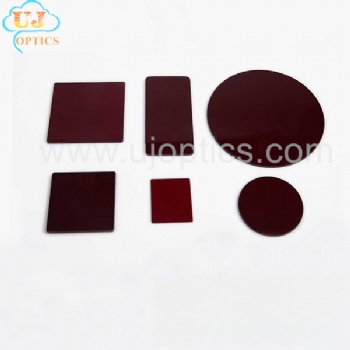

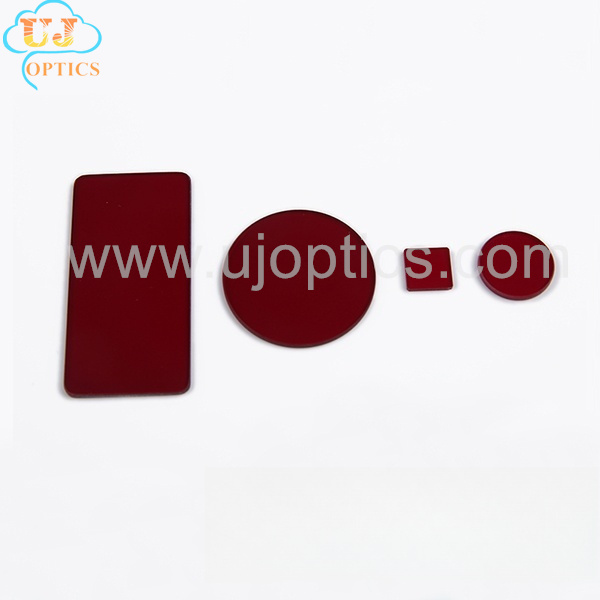

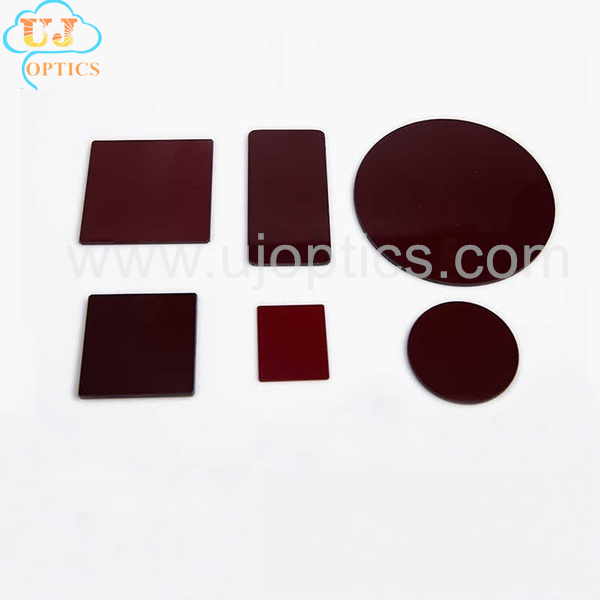

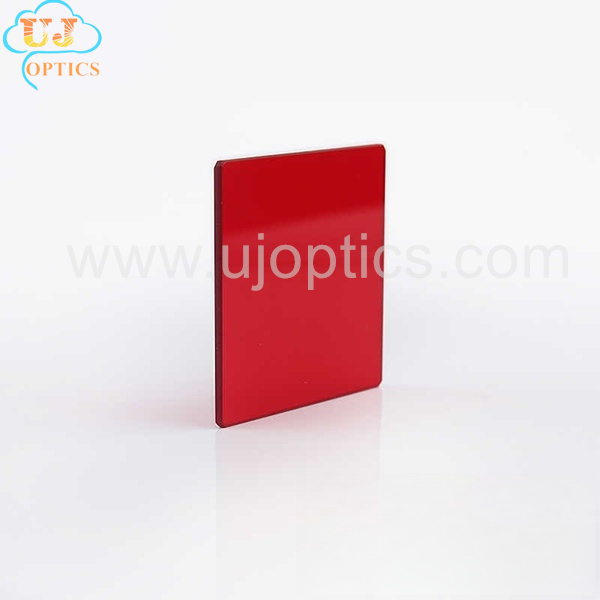

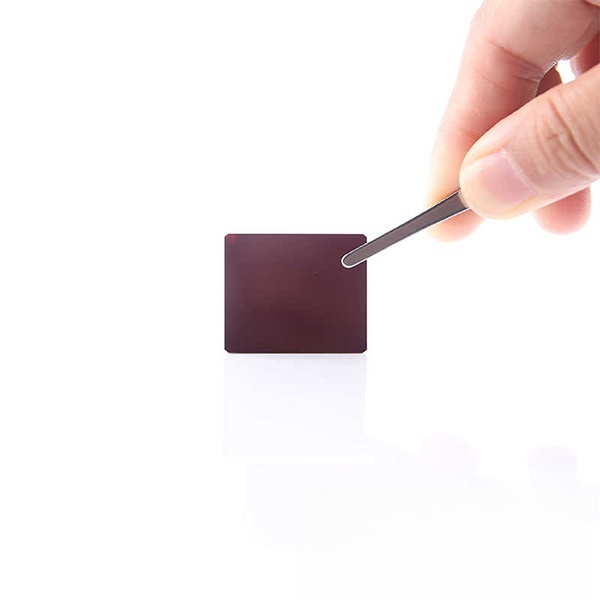

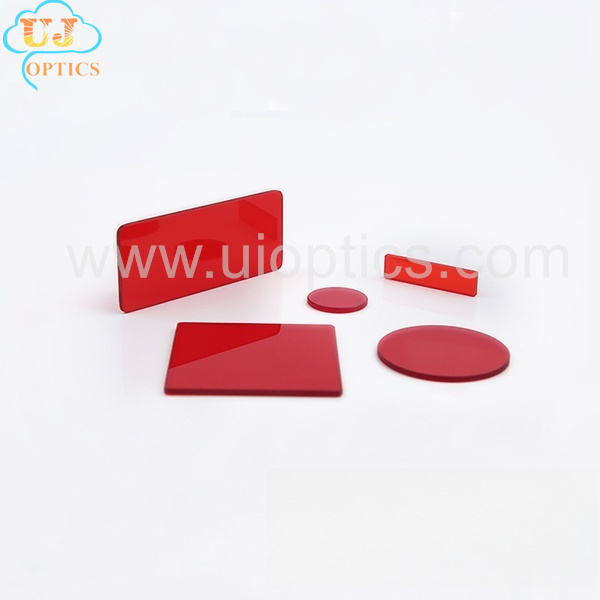

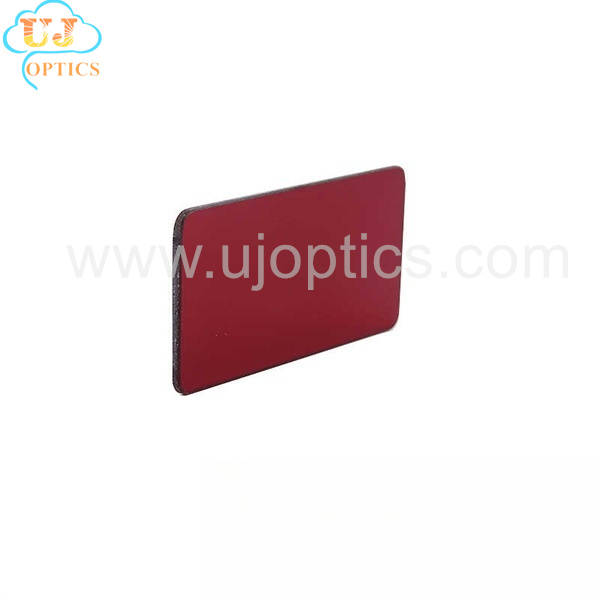

Product show
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| HB600 | R-60 | |
| HB610 | RG610 | |
| HB630 | RG630 | R-62 |
| HB640 | RG645 | R-64 |
| HB650 | R-66 | |
| HB670 | RG665 | |
| HB685 | R-68 | |
| HB700 | RG695 | R-70 |
| HB720 | RG715 | R-72 |
| Parameter of HB600 HB610 HB630 HB640 HB650 HB670 HB685 HB700 HB720 Red Cut Off Optical Glass Filter | |
| Title | HB600 HB610 HB630 HB640 HB650 HB670 HB685 HB700 HB720 Red Cut Off Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | HB600 HB610 HB630 HB640 HB650 HB670 HB685 HB700 HB720 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm or customized |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm or customized |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface accuracy | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if hingh cost |

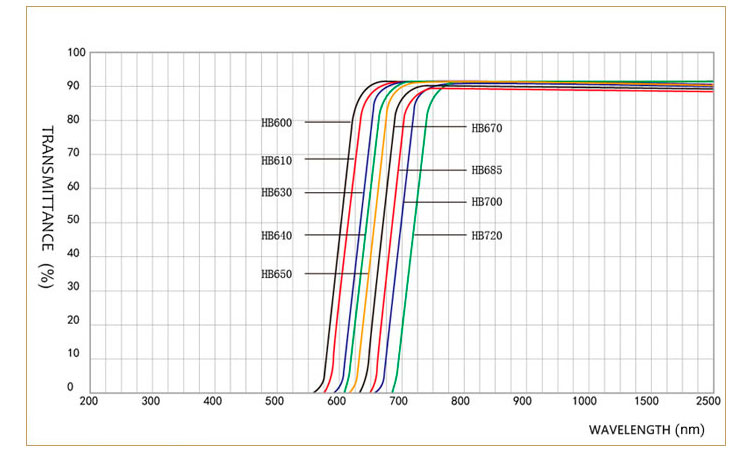

Red Cut Off Optical Glass Filter Spectral Curve

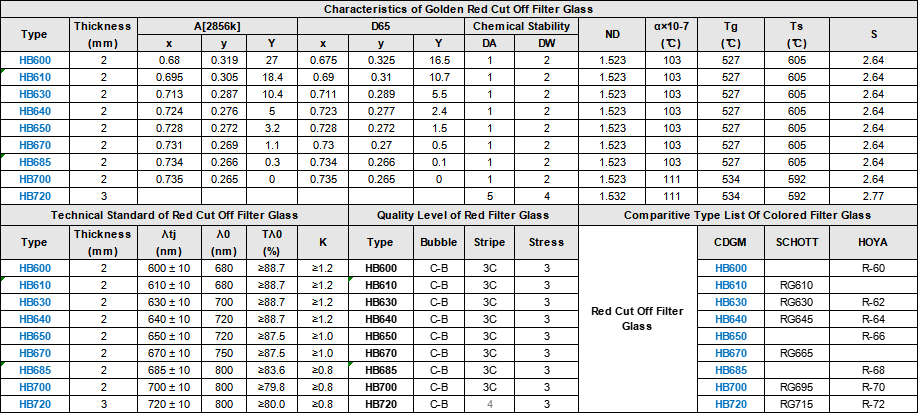

Characteristics Technical Standard Quality Level of Red Cut Off Optical Glass Filter
