CB535 CB550 CB565 CB580 Orange Cut Off Optical Glass Filter
The CB535, CB550, CB565, and CB580 Orange Cut-Off Optical Glass Filters are long-pass filters designed to block ultraviolet light (e.g., CB535 cuts off at 535±10nm) while transmitting visible red/green light and near-infrared (650-680nm, T≥88.7%). Available in 0.3-18mm thickness with high Mohs hardness, customizable for diverse applications. Ideal for instrumentation, decorative lighting, and beauty devices (e.g., IPL hair removal), combining functionality with aesthetic durability.

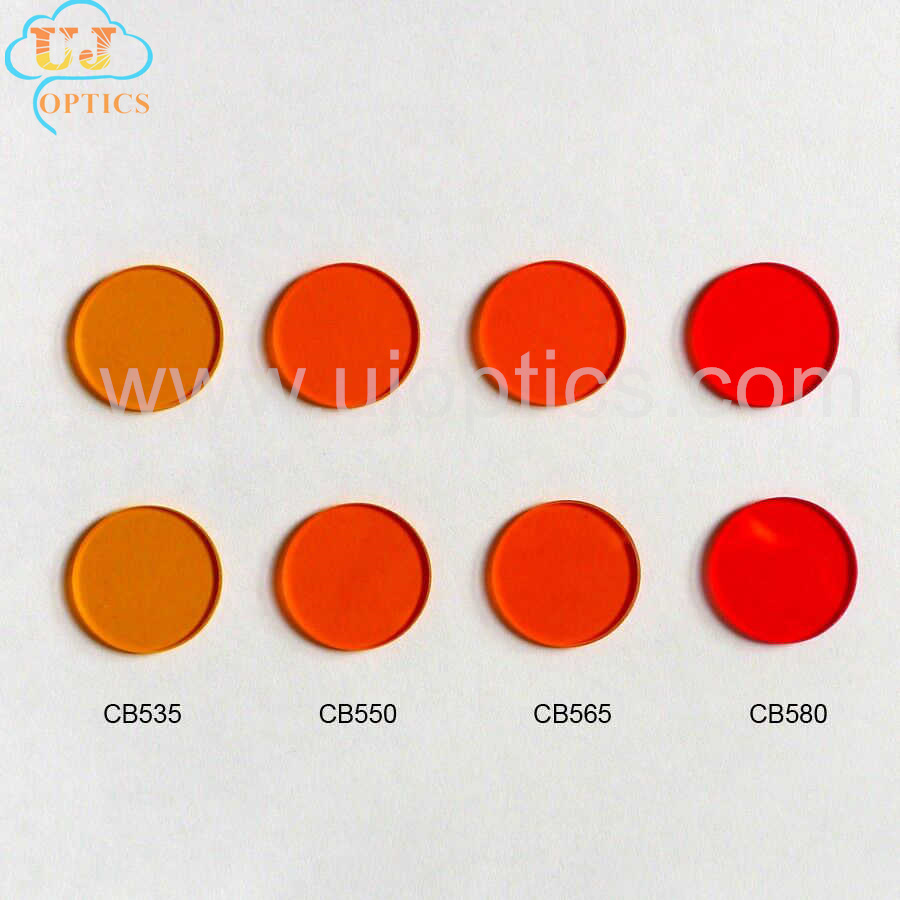

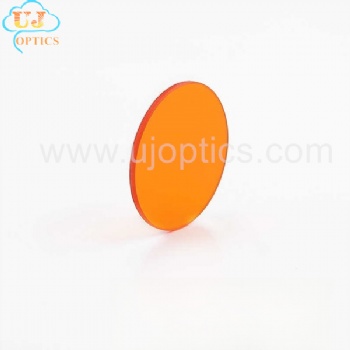

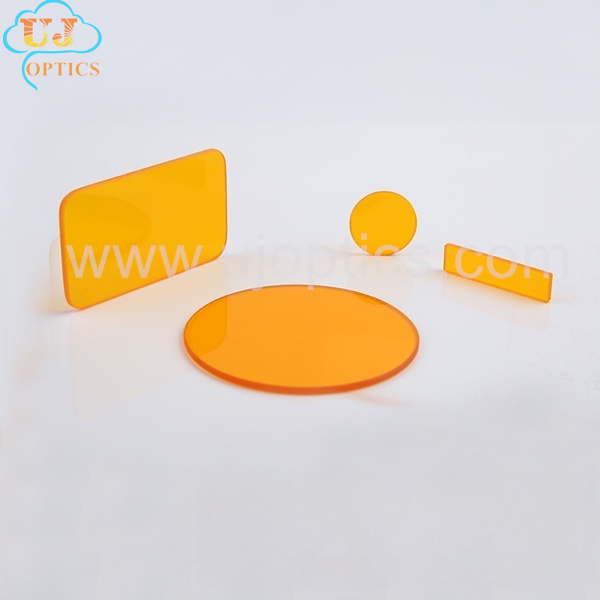

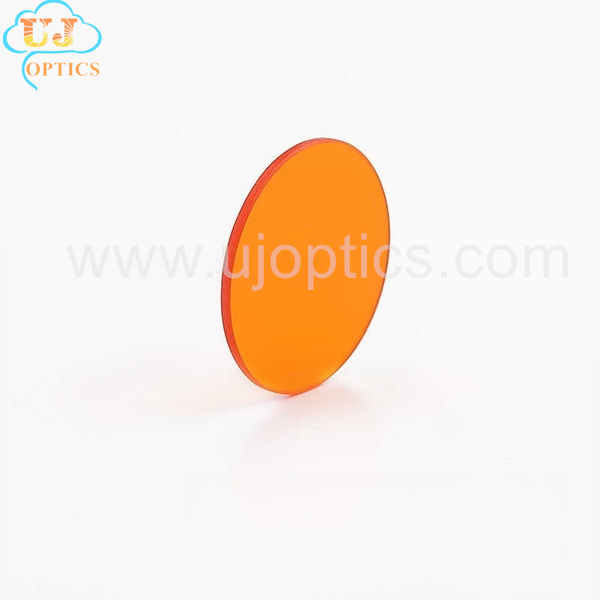

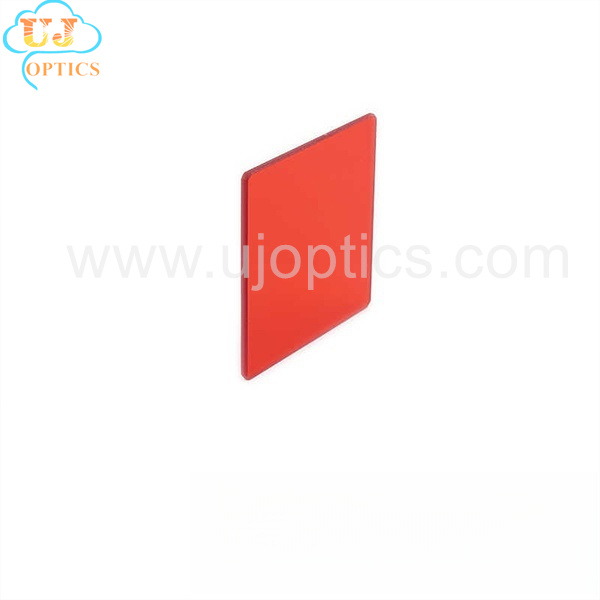

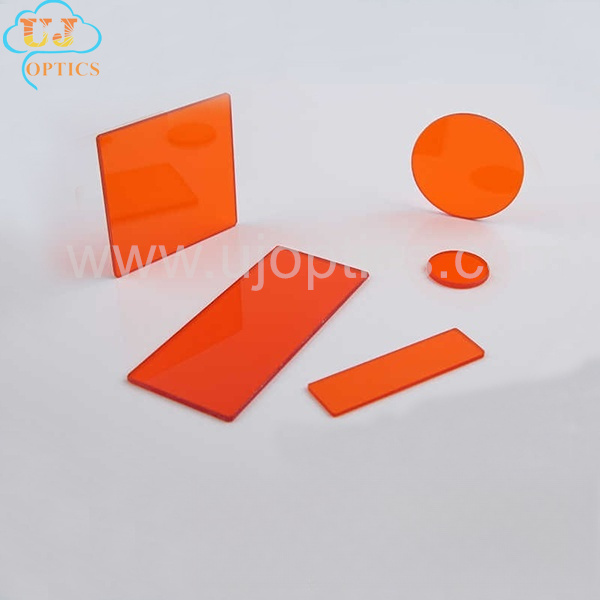

Product show
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| CB535 | GG530 | 0-54 |
| CB550 | GG550 | |
| CB565 | GG570 | 0-56 |
| CB580 | GG590 | 0-58 |
| Parameter of CB535 CB550 CB565 CB580 Orange Cut Off Optical Glass Filter | |
| Title | CB535 CB550 CB565 CB580 Orange Cut Off Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | CB535 CB550 CB565 CB580 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm or customized |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm or customized |
| Chamfer | 0.25x45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface accuracy | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free 1-2pcs or charged if hingh cost |

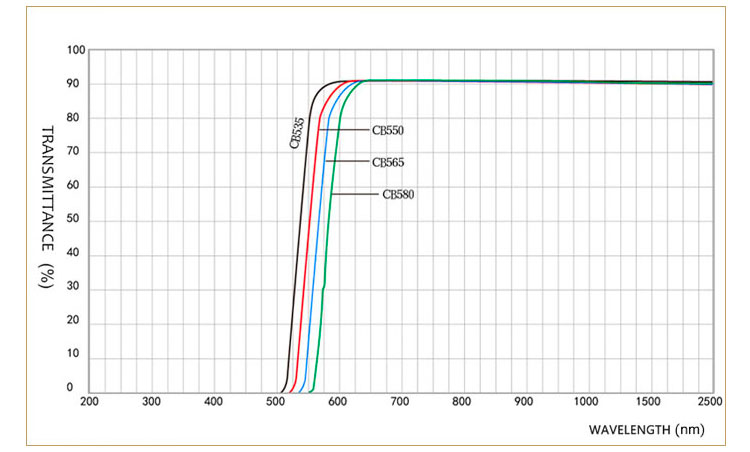

Orange Cut Off Optical Glass Filter Spectral Curve

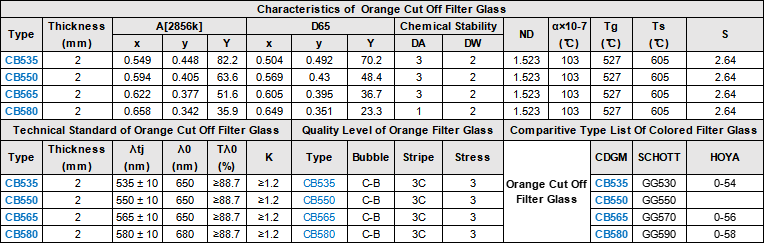

Characteristics Technical Standard Quality Level of Golden Yellow Cut Off Filter Glass Filter
