532nm Notch Optical Filter

DETAILS


532nm Notch Optical Filter

532nm negative filter. The main feature of this product is that it can attenuate the dazzling green laser emitted by the laser and the 1064nm frequency-doubled laser to protect the eyes of the workers, and clearly see the objects with specific different color spectral characteristics; it can protect the eyes of the workers from being damaged by the dazzling green laser emitted by the green laser and the 1064nm frequency-doubled laser, attenuate the strong green laser, and clearly see the objects with specific different color spectral characteristics.

ItemParameters
Product Name532nm Notch Optical Filter
Model NumberNotch532
Transmitted Band400nm-495nm&550nm-950nm
TavgT>90%
Laser Wavelength532nm
Notch Bandwidth10nm
Blocking RateOD>3
Raw MaterialB270 or Corning gorilla glass or other optical glass
Surface Quality(S/D)60/40 or better
AOI0±3 degrees
DimensionD25x1mm Customized
ThicknessCustomized

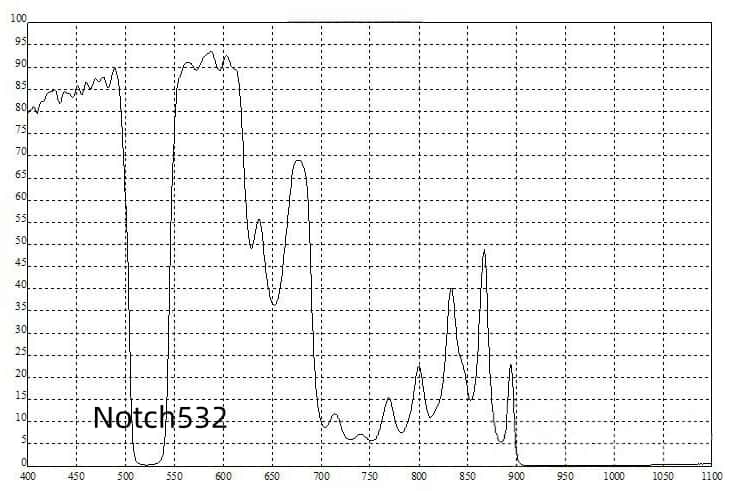

532nm Notch Optical Filter Spectral Curve.jpg
