308nm Notch Optical Filter

DETAILS


308nm Notch Optical Filter

The 308nm Notch Optical Filter is engineered for precision applications requiring targeted UV light suppression. With >90% transmittance across 250-1200nm and OD>6 blocking at 308nm±5nm, it excels in medical excimer laser systems (e.g., 308nm XeCl lasers for psoriasis and vitiligo therapy) by isolating therapeutic wavelengths while protecting sensitive detectors  .Ideal for Raman spectroscopy and industrial UV-sensitive instruments, its hard-coated dielectric layers withstand high-power laser exposure (up to 1J/cm²).Customizable bandwidths (±5nm-±20nm) and fused silica substrates ensure compatibility with diverse optical configurations.

ItemParameters
Product Name308nm Notch Optical Filter
Model NumberNotch308
Transmitted Band260nm-275nm&340nm-700nm
TavgT>90%
Laser Wavelength308nm
Notch Bandwidth10nm
Blocking RateOD>3
Raw MaterialB270 or Corning gorilla glass or other optical glass
Surface Quality(S/D)60/40 or better
AOI0±3 degrees
DimensionCustomized
ThicknessCustomized

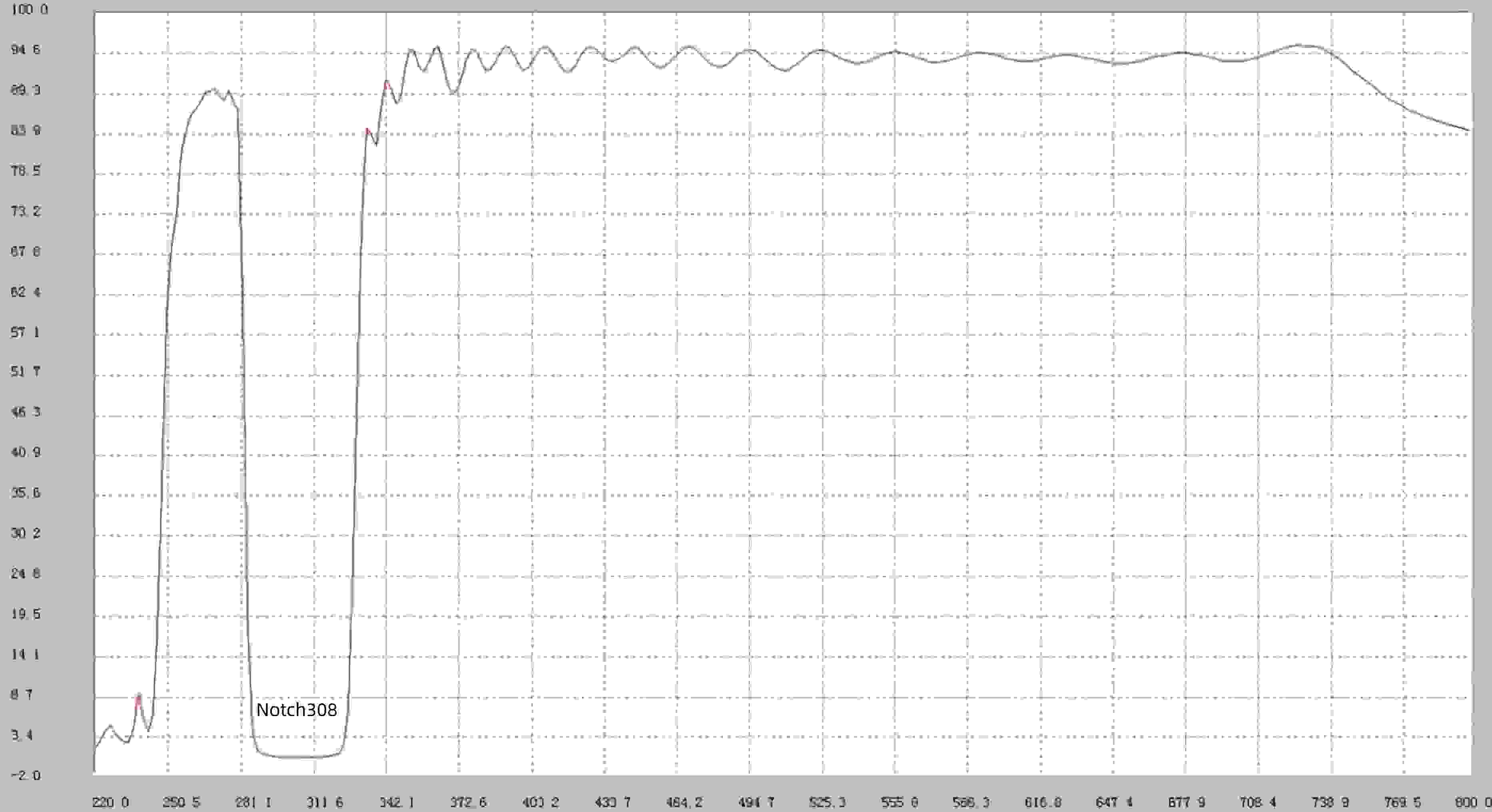

308nm Notch Optical Filter Spectral Curve .jpg
