HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter
Crafted with precision optical glass to block 500-600nm stray light while achieving >90% transmittance in 610-750nm range, ensuring high contrast and color purity. Ideal for laser systems, fluorescence analysis, semiconductor inspection, and medical imaging.

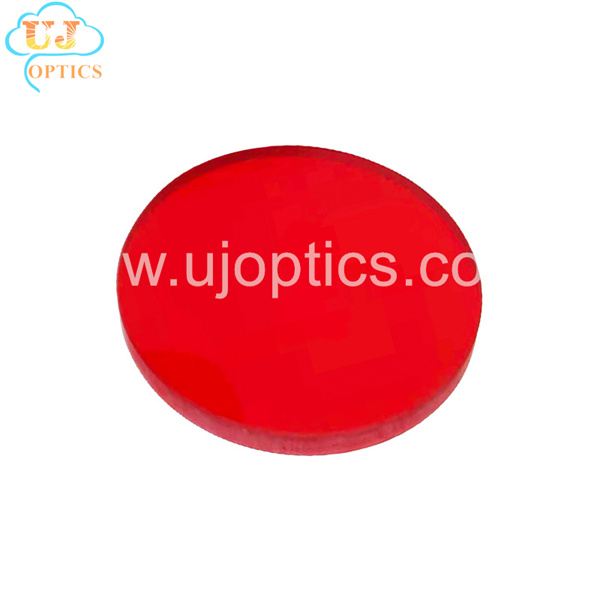

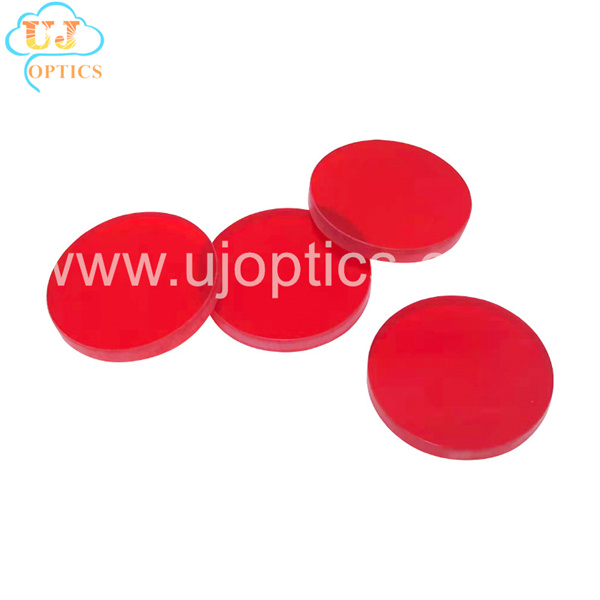

Product show
| Comparitive Type List Of Colored Filter Glass | ||
| CDGM | SCHOTT | HOYA |
| HB1 | ||
| HB3 | RG6 | |
| HB5 | ||
| HB6 | RM-86 | |
| Parameter of HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter | |
| Product name | HB1 HB3 HB5 HB6 Red Selective Absorption Optical Glass Filter |
| Place of origin | Jiangsu, China |
| Customized | OEM ODM |
| Model number | HB1 HB3 HB5 HB6 |
| Substrate Material | Optical filter glass |
| Dimension | Customized |
| Dimension Tolerance | 0.0/-0.1mm |
| Thickness | 2mm 3mm or customized |
| Thickness tolerance | 0/-0.05mm |
| Chamfer | 0.25*45 degree or as needed |
| Tempered | Harden as requirement |
| Coating | Uncoated or Coated as requirement |
| Transmittance | T>90% |
| Surface quality S/D | 60/40 or better |
| Surface | λ/4 or higher |
| Application | Optical Area,optical instruments,stage light,gobo light |
| Sample | In stock filters mostly provide for free |
Red Selective Absorption Optical Glass Filter

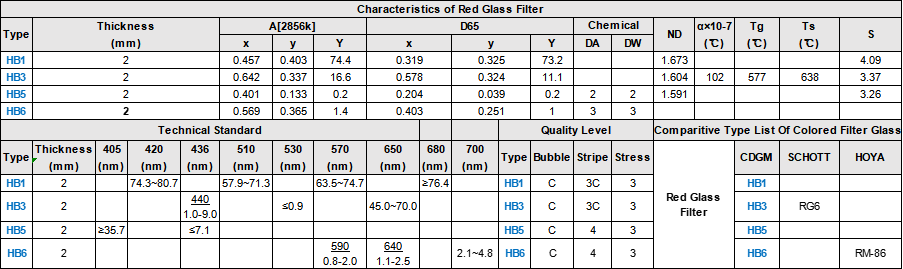

Characteristics Technical Standard Quality Level of Red Selective Absorption Optical Glass Filter
