UJ OPTICS

ZWB1 ZWB2 ZWB3 UV Selective Absorption Optical Glass Filter

    UV Selective Absorption Filter
    CDGM SCHOTT HOYA
    ZWB1 UG11 U-340
    ZWB2 UG1 U-360
    ZWB3 UG5 U-330


DETAILS


ZWB1 ZWB2 ZWB3 UV Selective Absorption Optical Glass Filter

ZWB1/ZWB2/ZWB3 UV Selective Absorption Optical Glass Filters Designed for precise UV spectrum extraction, ZWB series filters transmit key mercury lamp wavelengths (254nm, 313nm, 365nm) while blocking visible light. ZWB1 (equivalent to Schott UG11/Hoya U-340), ZWB2 (UG1/U-360), ZWB3 (UG5/U-330), customizable thickness (1-5mm), widely used in UV transilluminators, geological surveys, medical diagnostics, and industrial NDT. Features high chemical stability, ISO-certified quality, and supports laser engraving/size customization.


Comparitive Type List Colored Filter Glass
ZWB1 ZWB2 ZWB3 color UV filter.jpgCDGMSCHOTTHOYA
ZWB1UG11U-340
ZWB2UG1U-360
ZWB3UG5U-330


Parameter of ZWB1 ZWB2 ZWB3 UV Selective Absorption Optical Glass Filter
TitleZWB1 ZWB2 ZWB3 UV optical glass filter
Place of originJiangsu, China
CustomizedOEM, ODM
Model numberZWB1 ZWB2 ZWB3
Substrate MaterialOptical filter glass
ColorBlack
Dimenisonxxx or customized
Dimension Tolerance0.0/-0.1mm/±0.1mm
Thickness2mm 3mm or custom
Thickness tolerance0/-0.05mm
Chamfer0.25x45 degree or as needed
TemperedHarden as requirement
CoatingUncoated or Coated as requirement
TransmittanceT>90% usually
Surface quality(S/D)60/40 or better
Surface accuracyλ/4 or higher
ApplicationOptical Area, optical instruments, stage light, gobo light
SampleIn stock filters mostly provided for free or charged if high cost


UV Selective Absorption Optical Glass Filter

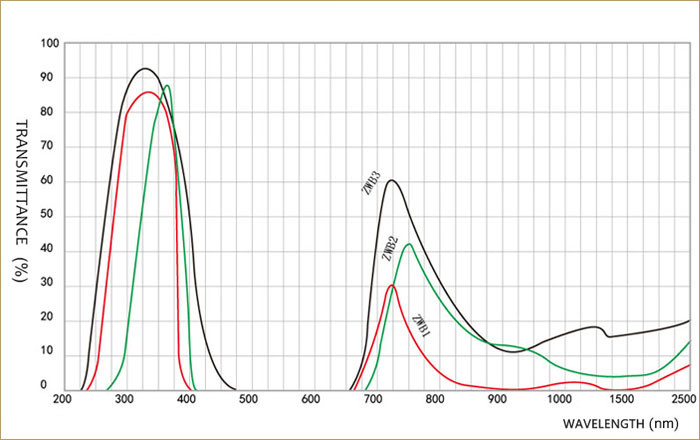

UV Pass Glass Filter Spectral Curve.jpg

Characteristics Technical Standard Quality Level of  UV Selective Absorption Optical Glass Filter

Characteristics Technical Standard Quality Level of  UV Selective Absorption Optical Glass Filter .jpg
