Yangzhou UJ Optical Element Co.,Ltd.

D21.5x2mm replacement laser lens for Precitec Hans

    Precitec OG YD21.5 d2 P0588-1022-00001
DETAILS


D21.5x2mm replacement laser lens for Precitec Hans

Main role is to block debris splash, to prevent spatter injuiry laser focus lens.

Both sides plated high damage threshold >15J/CM2 antireflection coating to reduce reflections.

quartz 120x5mm lens for laser cutting machine.jpg

Precitec Hans D21.5x2mm replacement laser lens Parameters
MaterialFused Silica

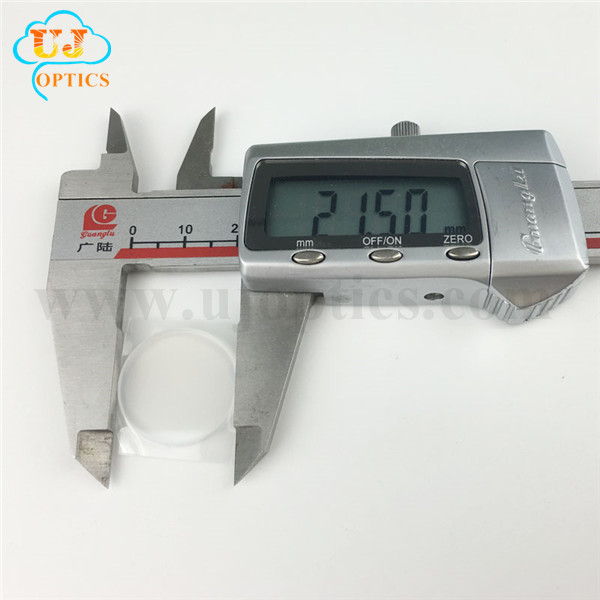

Lens Diameter21.5mm ±0.1mm

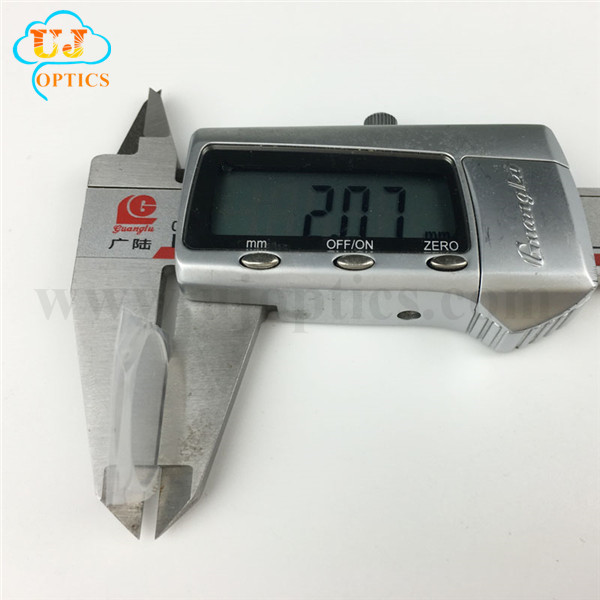

Edge Thickness2.0mm ±0.1mm
Laser type1064nm (BBAR 1020nm-1080nm)
Optical CoatingBoth sides AR/AR@1064nm(1020nm-1080nm)
ApplicationYAG/Fiber laser cutting/welding/Cladding machines
Laser power500w-6000w


Applicable machines including domestic and international brands,

Amada, Bystronic, Highyag, IPG, Mazak, Precitec, Prima, Trumpf,

DNE, Empower, Raytools, Friendess, Hans, Miyachi, LVD, Everbright, stars, LaserValley, U.W. Laser, Aohua, Chutian

Used for laser welding equipment, cutting machines, can protect the focuing lens from damage.


Please tell us the material, size, laser power, application before the quotation.
