Yangzhou UJ Optical Element Co.,Ltd.

D25mm 28mm 30mm F55mm 75mm 100mm 125mm 150mm Composite focusing lens for Precitec Empower HE LASER

    2pcs a set quartz fused silica concave convex lens
DETAILS

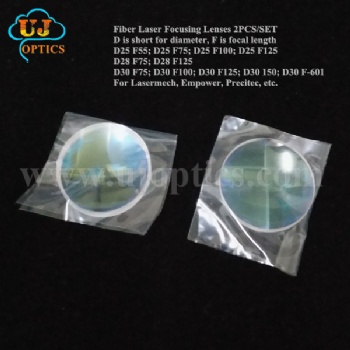

Fiber Laser Focusing Lenses.jpg

Composite focusing lens for Precitec Empower HE LASER Parameters
MaterialFused Silica(FS)  Quartz





Diameter(D)

Focal Length(F)

D25mm F55mm

D25mm F75mm

D25mm F100mm

D25mm F125mm

D28mm F75mm

D28mm F125mm

D30mm F75mm

D30mm F100mm

D30mm F125mm

D30mm F150mm

D30mm F-601mm

Diameter tolerance+0/-0.1mm
Thickness tolerance±0.1mm
ShapeSpherical
Surface  quality40/20 or better
Center  offset<1'
Wavelength1064nm
CoatingHigh damage  threshold of antireflection-coated on both sides at AR1064nm
Transmittance99.5%


We also can provide the fiber laser protection window, laser ceramic ring and fiber laser nozzles for Precitec, Trumpf, Bystronic, Lasermech, Highyag brand, etc.

Many other parts can also be provided, welcome to contact us.
