DETAILS

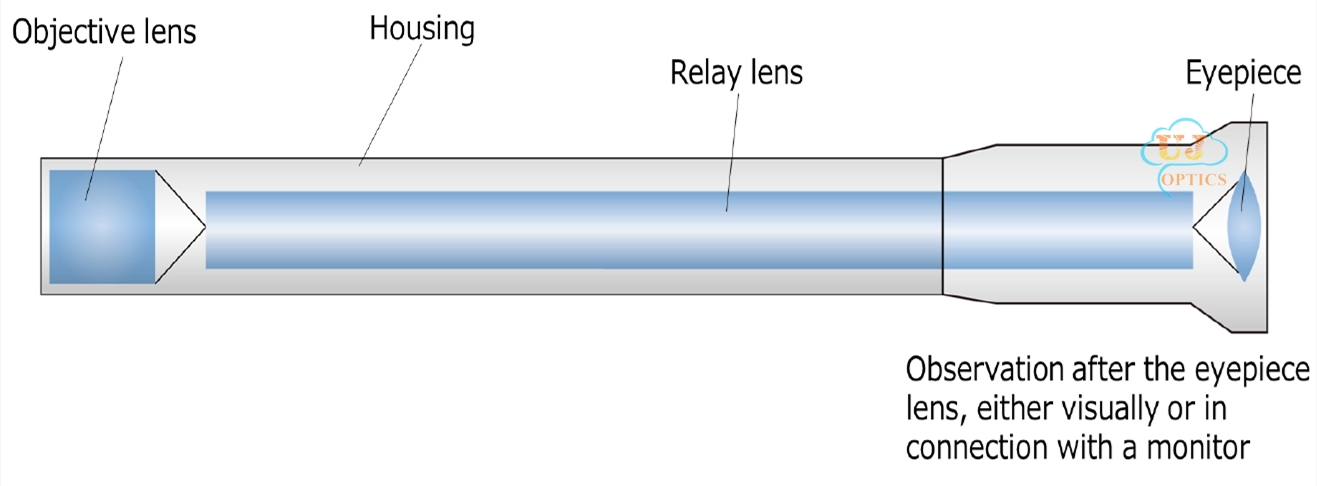

What is an objective lens

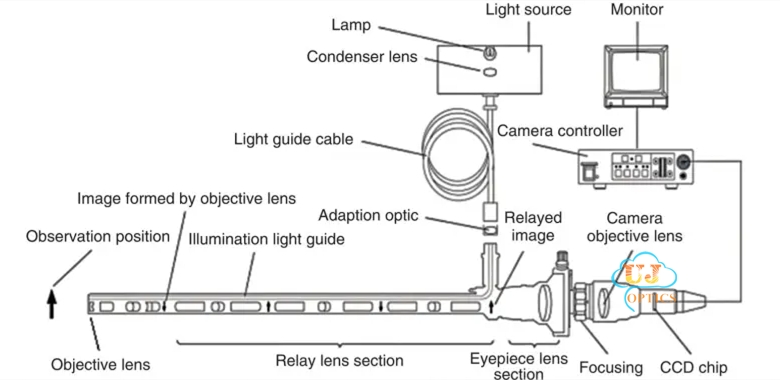

The endoscope objective lens is a critical optical component in endoscopic systems, responsible for capturing high-quality images of internal
cavities or structures within the body. Designed to meet stringent medical requirements, these lenses offer high resolution, wide fields of view,
and excellent light transmission while maintaining compact dimensions to fit within the narrow confines of an endoscope.
| Product Name | Endoscope objective lens |
| Dimensions | 0.2-200mm |
| Dimensional Tolerance | ±0.02mm |
| Material | Schott Glass Material for endoscope |
| Thickness | 0.2-100mm |
| Thickness Tolerance | ±0.02mm |
| Surface Quality | 20/10~60/40 |
| Irregularity | 0.05λ-1.00λ |
| Clear Aperture | ＞90% |
| Coating | Uncoated, or customized |

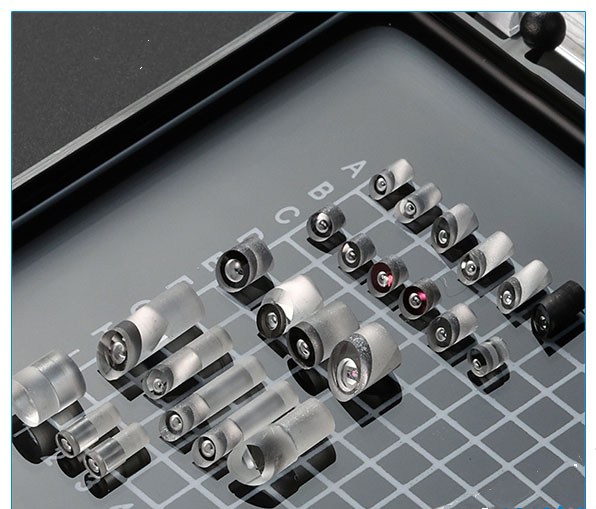

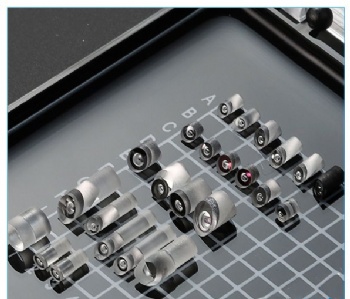

| Objective D1.09mm 0° 68° | Objective D1.09mm 30° 68° | Objective D1.68×1.90mm |
| Objective D2.69×2.60mm | Objective D2.92×2.85mm |
| Objective D2.92×2.85mm | Objective D2.94×2.85mm |
| Objective D1.09 0° 68° | Objective D1.09 30° 68° | Objective D1.68×1.90mm |
| Objective D1.09mm 0° 68° | Objective D1.09mm 30° 68° | Objective D1.68×1.90mm |
| Objective D2.70×3.53mm |
| Objective Ø 2.83 30° 90°A | Objective Head Ø 1.90 12° 60° | Objective Head Ø 1.90 30°100° |
| Objective Ø 1.19 0° 81° | Objective Ø 1.38 0° 81° | Objective Ø 1.38 25° 81° |
