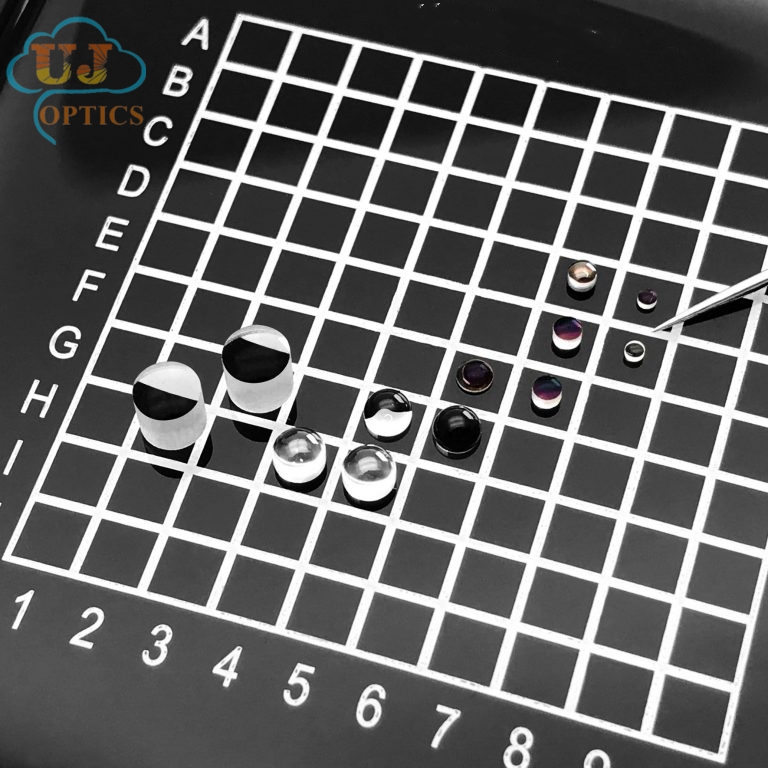

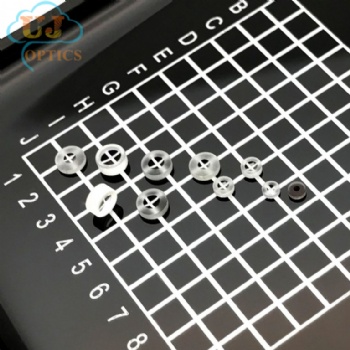

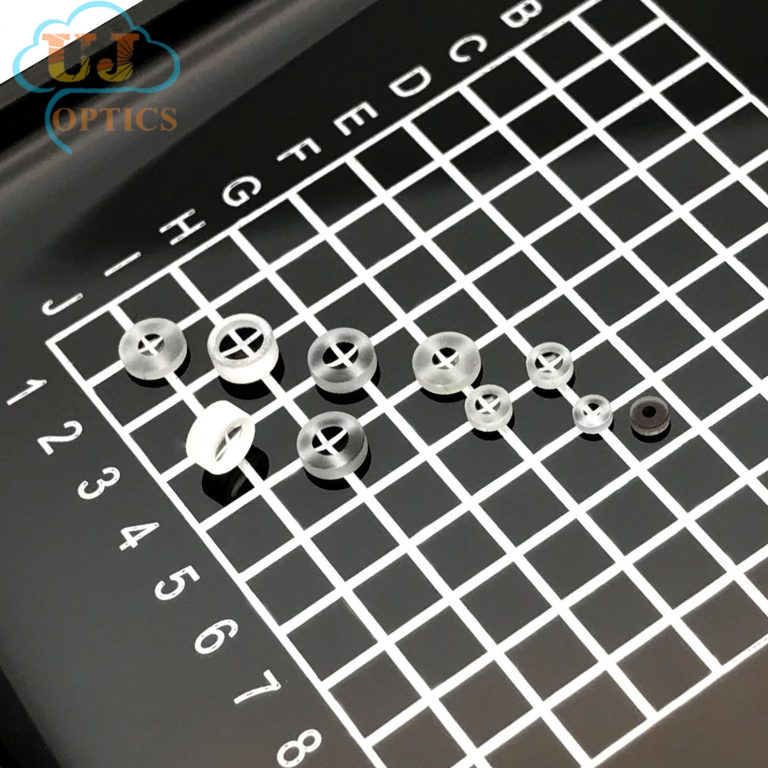

Rigid endoscope micro lens
Endoscope lenses are essential components in medical and industrial inspection. They are designed with high - precision optics
to provide clear and accurate images. Usually made of advanced optical materials, they can resist corrosion and wear. These
lenses help doctors diagnose diseases and technicians detect flaws, enabling detailed examination in confined spaces.
| Product Name | Endoscope micro lens |
| Dimensions | 0.2-300mm |
| Dimensional Tolerance | ±0.02mm |
| Material | N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 |
| Thickness | 0.1-30mm or custom |
| Surface quality | 20/10~60/40 |
| Flatness | 1/10lambda |
| Parallelism | ±30″ |
| Clear aperture | ＞90% |
| Coating | Uncoated, or customized |
| Type | Plano-convex Plano-concave Bi-convex Bi-concave Achromatic lens Meniscus lens |
The micro lenses available with:plano-convex, plano-concave, Bi-Convex, Bi-concave, Achromatic lens, Meniscus lens.
plano-convex lens | plano-concave lens | Bi-Convex lens |
|
|
|
Bi-concave lens | Achromatic lens | Meniscus lens |
|
|
|
