Endoscope Rod Lens diameter 1.09mm length 6.90mm for Linvatec Dyonics Stryker

    Endoscope Rod Lens diameter 1.09mm length 6.90mm for Linvatec Dyonics Stryker
DETAILS

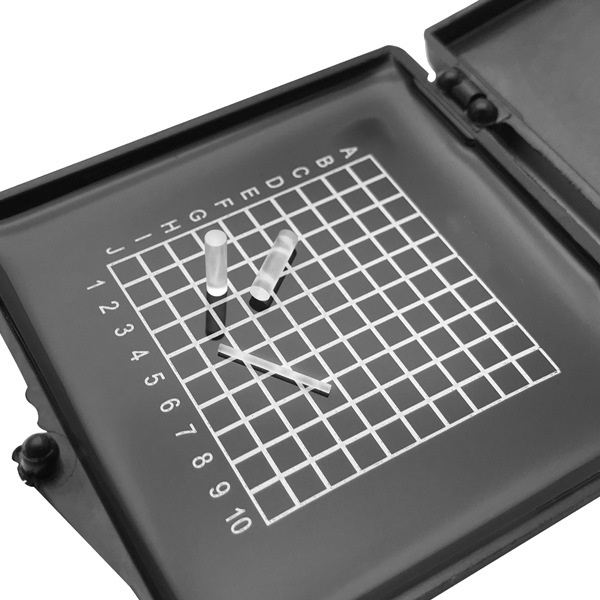

Endoscope Rod Lens diameter 1.09mm length 6.90mm for Linvatec Dyonics Stryker

For manufacturer: Linvatec Dyonics Stryker

For Models: T1930, 4184, 3863, 502-820-030, 502-624-030, 502-524-030, 502-424-030,

502-819-030, 502-144-030, 7208133

Series: D1.09

Grouping: Arthroscope

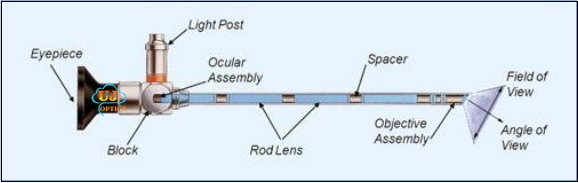

Components of an Endoscope

1Endoscope rod lens objective lens prism distal window.jpg

Parameters for Endoscope rod lens
Product NameEndoscope rod lens
Diameter0.5-500mm
Length0.5-500mm
Material

N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4

Radius of curvature tolerance±0.05%
Surface quality20/10~60/40
Surface FlatnessN3, ΔN0.5 for spherical surface

N λ/4~λ/8 for flat surface

Centering5′
Clear aperture90%
CoatingUncoated, or customized
Type

Flat/Flat or Plano-Convex or Plano-Concave or Cemented
