DETAILS
Endoscope Rod Lens diameter 3.70mm length 13.70mm for Stryker
For manufacturer: Stryker
For Models: UHD5500, UHD5530, 0502-503-010, 0502-503-030, 0502-503-045
Series: D3.70
Grouping: Laparoscope

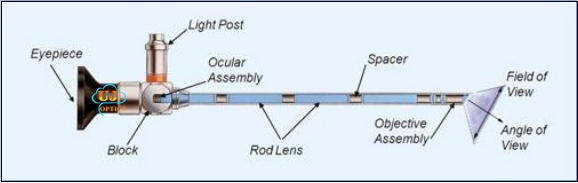

Components of an Endoscope
| Product Name | Endoscope rod lens |
| Diameter | 0.5-500mm |
| Length | 0.5-500mm |
| Material | N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4 |
| Radius of curvature tolerance | ±0.05% |
| Surface quality | 20/10~60/40 |
| Surface Flatness | N＜3, ΔN＜0.5 for spherical surface N λ/4~λ/8 for flat surface |
| Centering | ＜5′ |
| Clear aperture | ＞90% |
| Coating | Uncoated, or customized |
| Type | Flat/Flat or Plano-Convex or Plano-Concave or Cemented |
