DETAILS

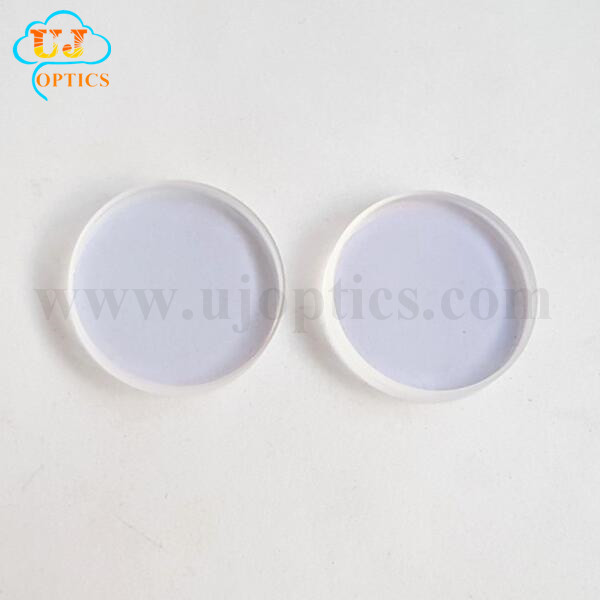

Protective lens 18x2mm for Fiber Laser Hand Welding
| Parameters | |
|---|---|
| Material | Fused Silica |
| Lens Diameter | 18mm ±0.1mm |
| Edge Thickness | 2.0mm ±0.1mm |
| Laser type | 1064nm (BBAR 1020nm-1080nm) |
| Optical Coating | Both sides AR/AR@1064nm(1020nm-1080nm) |
| Application | YAG/Fiber laser cutting/welding/Cladding machines |
| Laser power | 500w-6000w |
Applicable machines including domestic and international brands,
including AMADA, Bystronic, Highyag, IPG, Mazak, Precitec, Prima, TRUMPF,
DNE, Empower, Raytools, Friendess, Hans, Miyachi, LVD, Everbright, stars, LaserValley, U.W. Laser, Aohua, Chutian
Used for laser welding equipment, cutting equipment application, can protect the focusing lens from damage.
Please tell us the material, size, laser power, application before quote.
